Micro Type Orthopedic Tools: Precision Instruments for Minimally Invasive Musculoskeletal Care

The rise of minimally invasive orthopedic surgery has spurred the development of micro type orthopedic tools—compact, high-precision instruments engineered to perform complex bone and soft tissue procedures through tiny incisions. Unlike conventional orthopedic tools, these miniaturized devices prioritize delicacy without compromising power, enabling surgeons to treat delicate anatomical structures with unprecedented accuracy. As a cornerstone of modern minimally invasive orthopedics, they have transformed patient outcomes by reducing trauma, scarring, and recovery time.

Micro type orthopedic tools are defined by their compact design, with dimensions significantly smaller than standard instruments—many have shaft diameters as narrow as 1–3mm, paired with lightweight, ergonomic handles that fit comfortably in a surgeon’s hand. This miniaturization is paired with exceptional precision, achieved through advanced manufacturing techniques like laser cutting and micro-machining, which refine tool tips to microscopic sharpness. Despite their small size, these tools deliver controlled force and motion thanks to integrated micro-motors or manual mechanisms optimized for fine adjustments—features that make two specific types particularly indispensable: micro-drills and micro-oscillating saws.

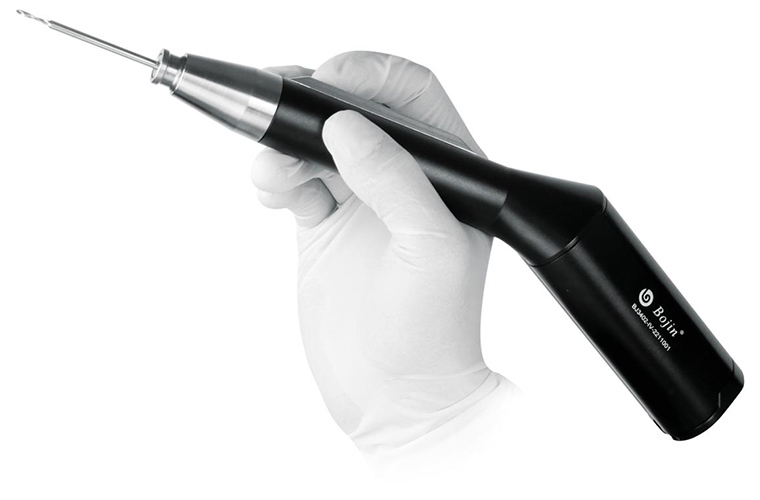

Key types of micro type orthopedic tools cater to diverse minimally invasive needs, with micro-drills and micro-oscillating saws being the most widely used and critical, as they fully leverage the miniaturization and precision highlighted above. Micro-drills, featuring tiny 0.5–2mm tungsten carbide bits, are designed for ultra-precise hole drilling in delicate anatomical sites. They are commonly used in hand surgery to drill pilot holes for tiny fixation screws when repairing fractured phalanges or metacarpals, ensuring the screws fit snugly without splitting the fragile bone. In spinal micro-surgery, micro-drills with adjustable micro-motors create small channels in vertebrae for nerve decompression or to prepare sites for miniaturized bone grafts, avoiding damage to the spinal cord and surrounding nerve roots. For pediatric cases, specialized micro-drills with low-torque settings treat congenital bone deformities, such as craniofacial or limb anomalies, adapting to the soft, growing bone without causing permanent damage.

Micro-oscillating saws, by contrast, complement micro-drills in minimally invasive procedures, featuring narrow, thin serrated blades (0.1–0.3mm thick, 5–10mm long) that move in rapid, small arcs (5–10 degrees)—a design that minimizes tissue disruption while enabling controlled, precise cuts in fragile bone and cartilage. In foot surgery, they trim bony spurs during bunion correction or reshape fractured metatarsals, with their small blade size allowing access through 5–8mm incisions and minimizing damage to surrounding ligaments and tendons. In arthroscopic knee or shoulder surgery, micro-oscillating saws are paired with endoscopes to remove damaged cartilage or bone fragments from joint spaces, a procedure that would otherwise require larger incisions. They are also indispensable in pediatric orthopedics for correcting clubfoot: the saw’s gentle oscillating motion trims and reshapes the tarsal bones without disrupting the developing growth plates, ensuring normal limb growth post-surgery. Beyond these applications, micro tools excel in correcting small bone fractures in the wrist or ankle, where the same precision critical to hand, foot, and pediatric procedures is paramount to preserving full mobility.

The performance of these micro-drills, micro-oscillating saws, and other micro type orthopedic tools is driven by ongoing technological and material innovations. Medical-grade titanium and cobalt-chromium alloys ensure durability and corrosion resistance, even in the compact tool design—essential for withstanding repeated sterilization and precise use. Many of these tools, including the micro-drills and micro-oscillating saws detailed above, feature adjustable speed and torque controls, allowing surgeons to tailor performance to tissue density—critical for working with delicate bones. Some also integrate with surgical microscopes or endoscopes, enabling surgeons to visualize the tool’s position in real time and further enhance the precision that defines micro orthopedic procedures.
