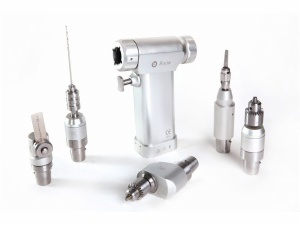

System 8200 Multi-function surgical power tool(System 8200)

Availability:
System 8200 Multi-function surgical power tool(System 8200)
Attachments for your selection:
BJ8201 Sagittal saw.
BJ8203 Canulate drill.
BJ8202SAO AO drill.
BJ8209 Reciprocating saw.
BJ8213 K-wire drill.


Specification:

Electric Handpiece
BJ8200
Electric:
Yes
Multifunctional:
Yes
Weight (with battery):
≤1000 Grams
Speed:
0-15000 rpm
Power source:
Battery
Sterilizable:
Autoclavable
Battery:
BJ8001
Technology:
Ni-Mh
Insert/detachment method:
The telescopic
The blocking mechanism:Yes
Autoclavable Aseptic Transfer Kit:
Yes
Run time with battery:30-40 min
Sagittal saw attachment:BJ8201
Oscillations (osc/min)0-15000
Operation(V) voltage7.2
Sterilization135°C
Noise(db)≤45
Bone drill attachment:BJ8202
Speed(r.p.m)0-1100
Torque(Nm)0.9
Operation(V) voltage7.2
Sterilization135°C
Noise(db)≤40
Canulate drill attachment:BJ8203
Speed(r.p.m)0-460
Torque(Nm)1
Operation(V) voltage7.2
Sterilization135°C
Noise(db)≤40
Ao drill attachment:BJ8202SAO
Oscillations (osc/min)0-1100
Operation(V) voltage7.2
Sterilization135°C
Noise(db)≤40
Reciprocating saw attachment:BJ8209
Speed(r.p.m)0-15000
Torque(Nm)/
Operation(V) voltage7.2
Sterilization135°C
Noise(db)≤45
K-wire drill attachment:BJ8213
Speed(r.p.m)0-1100
Torque(Nm)1
Operation(V) voltage7.2
Sterilization135°C
Noise(db)≤40

Warranty:
The handpiece guarantees for 2 years, the battery and other fast consumption items guarantee for 3 months.


Advantages:

1.Excellent torque for prosthesis replacement surgery.
2.Powerful motors can provide the best speed and power.
3.Extended capacity battery ensure the implementation of efficient operation.
4.The main components are made of high-strength stainless steel.
5.Optional external power supply system.
6.Autaclavable.
7.Single and multi-function mode for selection.
