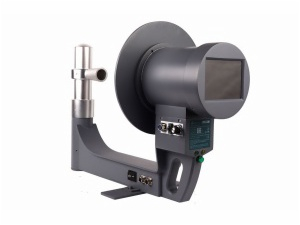

Specification:| Model | BJI-2J |
| Field of Vision | Φ100mm |
| Imaging Resolution | 30lp/cm |
| Maxi Objective Thickness | 300mm |
| Screen Brightness | Applicable |
| X-ray Tube Voltage/Current | 75kV/0.35mA |
| X-ray Leakage | (50cm away from X ray tube, any angle)<1mGy/Hour |
| Grey Scale | ≥6 |
| Power Supply | 90-240V, 50 or 60Hz |
| Power Consumption | 250VA |
| Net Weight | 8kg |
| Gross Weight | 13kg |
| Size of Handheld Case | 66*53*22cm |
| Export image from any monitor? | Observe from monitor or computer |
| Specialization and application | Four limbs |
Application:1.It's a necessary tool for the surgeon, no matter where the surgeon are, both in the hospital and go one's rounds, or emergency treatment, wardround, repeat examination during operation, thanks to the small volume and light weight, makes workingwith easy-to -use control. It also play an important assistant role and providegreat efficiency in fracture application: fusion, fixing, thread a needle,pick out foreign objective, especially install intramedullary nai and fix supporting equipment.
2.X-ray inspection for infant; Check the women's birth control ring.The wounded treatment in sporting field, construction site, ocean-going vessel,
remote area and army training locale.
3.Widely used in scientific research, experiment, engineering, educational and scientific equipment.
4.Veterinary use.
5.Safety inspection in airport; post inspection.
6.lndustrial crack detection.
7.Other field.
Advantage:
1.High gain,high sensitivity, and high resolution image intensifer,offer your newer visual feeling.
2.Can work at any time without the darkroom and protecting.
3.Low radiation dose, reliable protection simple structure, small volume and light weight.
4.Can connect with monitor and computer.
